Introducing our solution:

Media Gateway

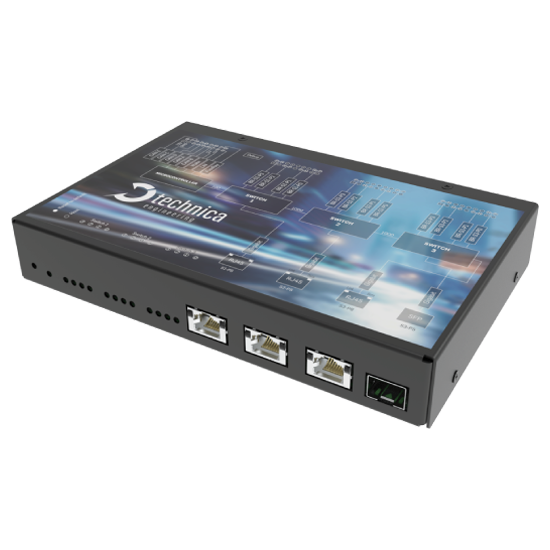

Media Gateway from Technica Engineering is a development tool for testing and analyzing onboard vehicle networks. Media Gateway features 3 x in-built automotive Ethernet switches, which means it can offer many ISO/OSI Layer 2 functions. It is the right fit for subsystem testing stations and can also be installed in a test vehicle without complications.

Order now
Key facts
12 Broadcom 100BASE-T1 ports (100 MBit/s full duplex on a single unshielded twisted pair)
3 Gigabit Ethernet ports
1 SFP Gigabit Ethernet port

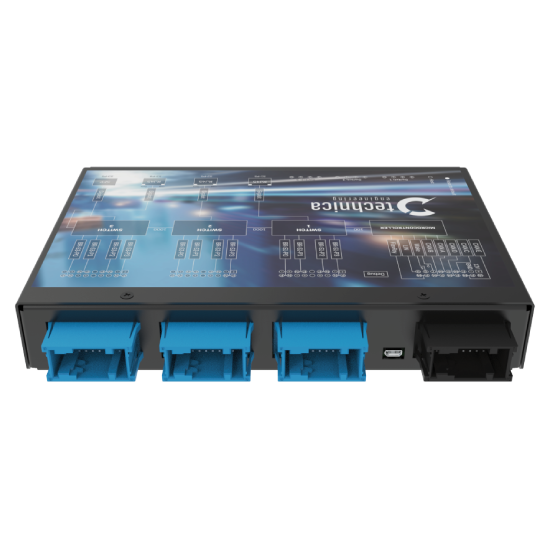

Automotive Tyco MQS connectors for 100BASE-T1 and power supply
19 status LEDs
Robust, galvanized sheet steel housing
Power requirement: 8 to 16 V DC, power consumption: 8 Watt
Size: 195 x 143 x 33 mm
Features
Single/Double VLANs
Port Mirroring
Static/Dynamic ARL Table
Web server for easy configuration: Master/Slave, HalfOut/FullOut
WakeUp-Function over Wake-up Line
Power output for attached devices: VBAT max. 1 Ampere in total
Possibility to reset to default settings by pushbutton
802.1AS Bridge function

Fits well with

MediaConverter 100/1000BASE-T1
MediaConverter 100BASE-T1
MediaConverter MultiGigabit
